Precision PDC CUTTER - PPF skärverktyg

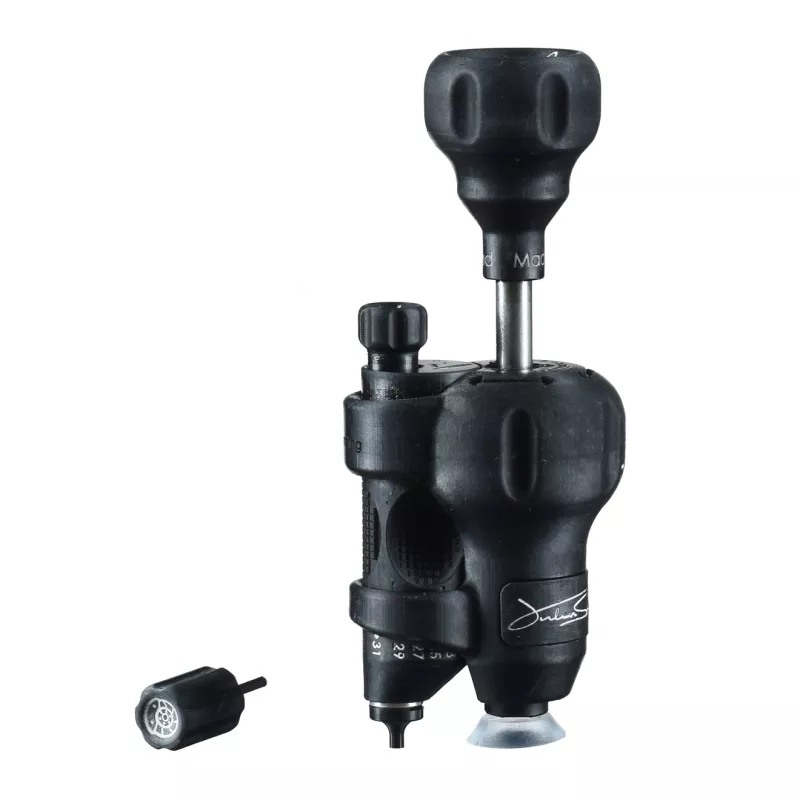

Precision PDC Cutter - Professionellt skärverktyg för p-sensorer

Detta precisionsverktyg kommer, med lite kunskap och övning, att låta dig skära parkeringssensorhål i PPF-film, efter att filmen har monterats på fordonet, i storlekar från 18 mm till 32 mm diameter.
Den använder ett bladstyrningssystem som, när det ställs in på rätt sätt, gör att filmen kan skäras i en perfekt cirkel, utan rädsla för att skära igenom och in i den underliggande färgen. Extremt snäva toleranser och fint bearbetade komponenter rakt igenom säkerställer att cirklarna blir perfekt runda, och ännu viktigare, stängs och sammanfogas exakt i slutet av ditt snitt.
Med en mikroblads djupjustering; diameterjustering; dragjustering / broms; och sugkoppsfot, detta verktyg är byggt för att kunna erbjuda en storlek som passar alla och, ännu viktigare, säkrare att använda och med ett perfekt resultat.
Alternativa produkter på marknaden är mindre precisa, högre risk och kan inte skära en snyggare cirkel.

• Mikrojusterbart skärdjup med skydd
• Skär sensorer från 18mm-32mm
• Rundstrålande skärriktning
• Självjusterande klinga av volframkarbid
• Justerbart rotationsmotstånd
• Utbytbara blad och sugkopp
• Ultraprecisionskomponenter rakt igenom

Do:

1. Oil the main shaft periodically but sparingly. See lubrication section above
2. Always test cut when something is changed
3. Keep dry. The blade adjustment/rotation mechanism and diameter adjustment relies very heavily on it's lack of internal friction. Do not use or leave in a wet environment or one with corrosive chemicals or solvents. Corrosion of internal components and/ or the washing away of internal lubrication will destroy the tool. If allowed to get wet, place in a warm dry environment for several hours or overnight.
4. Become familiar with the tool before using on a car

Do not:

1. Do not disassemble. In the interests of internal packaging and miniaturisation of the mechanisms inside the tool, it was necessary for it to be designed in such a way that disassembly is not possible once assembled. On account of this, with the exception of the blade, the blade guard and the suction foot, the components used inside are designed and manufactured to last the life of the tool and are therefore not user replaceable/ serviceable.
2. Do not drop, shock or treat roughly. The tool is built robustly and is designed to give many years of service but incorporates delicate components and assemblies that could be damaged or knocked out of true by a heavy shock, such as a drop into a hard floor
3. Do not force the drag adjustment mechanism. To make the brake mechanism as smooth and tactile as possible, the components inside are both small and delicate. Excessive force when increasing or decreasing drag can damage them. No more than a few turns either way is enough to increase the drag to a point where the tool has so much friction it would be difficult to make a cut or loosen it off completely. There is no reason to turn or force the adjustment tool any further when these two states are reached.
4. Do not oil the blade, blade guard, blade bearings. The blade adjustment and rotation assembly is precision lubricated with the correct viscosity oil when its assembled and will last the life of the tool. Adding excessive oil to the blade assembly will actually inhibit the blade adjustment and rotation performance, not improve it.
5. DO NOT, UNDER ANY CIRCUMSTANCES, UNSCREW THE BLADE DEPTH ADJUSTMENT KNOB AND PULL IT OUT. DOING SO WILL IRREPARABLY DAMAGE THE TOOL AND VOID THE WARRANTY
